Top Bar¶

AdaptiveTopBar is an adaptive top app bar that uses UIKit's UINavigationBar on iOS and Material3's TopAppBar on other platforms (Android, Desktop, Web).

On iOS, a native UINavigationBar is created using the iosTitle, iosLeadingItems, iosTrailingItems, and iosConfiguration parameters. On Material platforms, the standard Material3 TopAppBar parameters are used.

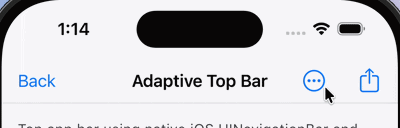

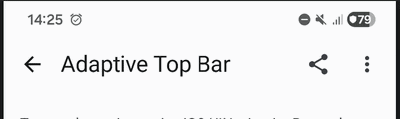

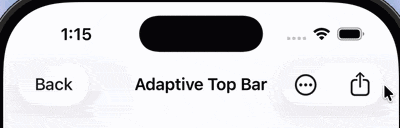

Material (Android, Desktop, Web)	Cupertino (iOS < 26)	Liquid Glass (iOS 26+)

Usage¶

@OptIn(ExperimentalMaterial3Api::class, ExperimentalCalfUiApi::class)
@Composable
fun MyScreen() {
    AdaptiveTopBar(
        title = { Text("My Screen") },
        navigationIcon = {
            IconButton(onClick = { /* navigate back */ }) {
                Icon(Icons.AutoMirrored.Default.ArrowBack, contentDescription = "Back")
            }
        },
        actions = {
            IconButton(onClick = { /* action */ }) {
                Icon(Icons.Default.Settings, contentDescription = "Settings")
            }
        },
        // iOS-specific parameters
        iosTitle = "My Screen",
        iosLeadingItems = listOf(
            UIKitUIBarButtonItem.systemItem(
                systemItem = UIKitUIBarButtonSystemItem.Close,
                onClick = { /* navigate back */ }
            )
        ),
        iosTrailingItems = listOf(
            UIKitUIBarButtonItem.title(
                title = "Settings",
                onClick = { /* action */ }
            )
        ),
    )
}

Parameters¶

Parameter	Description
`modifier`	The modifier to be applied to the top bar.
`title`	The title composable for Material3 TopAppBar.
`navigationIcon`	The navigation icon composable for Material3 TopAppBar.
`actions`	The action icons composable for Material3 TopAppBar.
`expandedHeight`	The expanded height of the Material3 TopAppBar.
`windowInsets`	The window insets for the Material3 TopAppBar.
`colors`	The colors for the Material3 TopAppBar. Uses `TopAppBarDefaults.topAppBarColors()` by default.
`scrollBehavior`	The scroll behavior for the Material3 TopAppBar.
`iosTitle`	The title string for the iOS UINavigationBar.
`iosLeadingItems`	The list of bar button items on the leading side of the iOS navigation bar. See `UIKitUIBarButtonItem`.
`iosTrailingItems`	The list of bar button items on the trailing side of the iOS navigation bar. See `UIKitUIBarButtonItem`.
`iosConfiguration`	Configuration for the iOS UINavigationBar appearance. See `UIKitNavigationBarConfiguration`.

iOS Configuration¶

You can customize the iOS navigation bar appearance using UIKitNavigationBarConfiguration:

AdaptiveTopBar(
    title = { Text("Large Title") },
    iosTitle = "Large Title",
    iosConfiguration = UIKitNavigationBarConfiguration(
        prefersLargeTitles = true,
        isTranslucent = true,
    ),
)

iOS Bar Button Items¶

Use UIKitUIBarButtonItem factory functions to create bar button items for iOS:

// Title-based item
UIKitUIBarButtonItem.title(
    title = "Done",
    onClick = { /* handle */ }
)

// System item
UIKitUIBarButtonItem.systemItem(
    systemItem = UIKitUIBarButtonSystemItem.Add,
    onClick = { /* handle */ }
)

// Flexible space (expands to fill available width)
UIKitUIBarButtonItem.flexibleSpace()

// Fixed-width space
UIKitUIBarButtonItem.fixedSpace(width = 16.0)

You can attach a native drop-down menu to a bar button item on iOS using UIKitUIBarButtonItem.withMenu(). This uses the native UIBarButtonItem.menu API (iOS 14+), providing smooth system animations anchored to the bar button — no overlay hacks needed.

On Material platforms, use a standard DropdownMenu inside the actions slot.

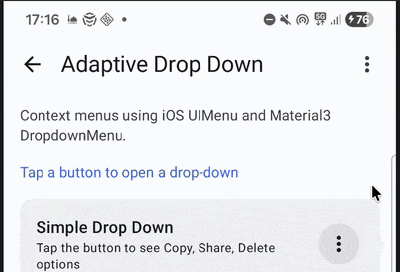

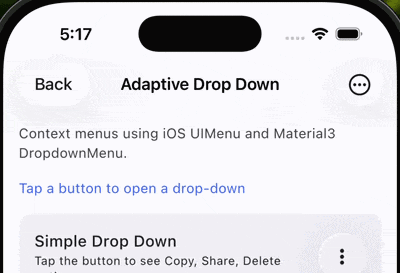

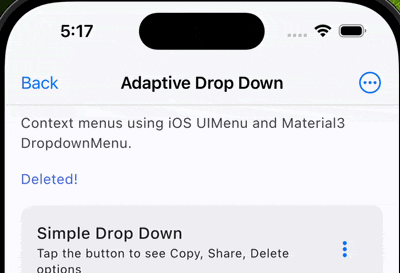

Material	Cupertino	Liquid Glass

@OptIn(ExperimentalMaterial3Api::class, ExperimentalCalfUiApi::class)
@Composable
fun MyScreen() {
    var expanded by remember { mutableStateOf(false) }

    AdaptiveTopBar(
        title = { Text("My Screen") },
        actions = {
            // Material platforms: standard DropdownMenu
            Box {
                IconButton(onClick = { expanded = true }) {
                    Icon(Icons.Filled.MoreVert, contentDescription = "More")
                }
                DropdownMenu(
                    expanded = expanded,
                    onDismissRequest = { expanded = false },
                ) {
                    DropdownMenuItem(
                        text = { Text("Edit") },
                        onClick = { expanded = false },
                    )
                    DropdownMenuItem(
                        text = { Text("Delete") },
                        onClick = { expanded = false },
                    )
                }
            }
        },
        // iOS: native pull-down menu on the bar button
        iosTitle = "My Screen",
        iosTrailingItems = listOf(
            UIKitUIBarButtonItem.withMenu(
                image = UIKitImage.SystemName("ellipsis.circle"),
                menuItems = listOf(
                    AdaptiveDropDownItem(
                        title = "Edit",
                        iosIcon = UIKitImage.SystemName("pencil"),
                        onClick = { /* handle */ },
                    ),
                    AdaptiveDropDownItem(
                        title = "Delete",
                        iosIcon = UIKitImage.SystemName("trash"),
                        isDestructive = true,
                        onClick = { /* handle */ },
                    ),
                ),
            ),
        ),
    )
}

Note

When a menu is provided, the onClick of the bar button item is ignored — the menu is shown as the primary action.

See also: Drop Down for more details on AdaptiveDropDownItem and sections.
